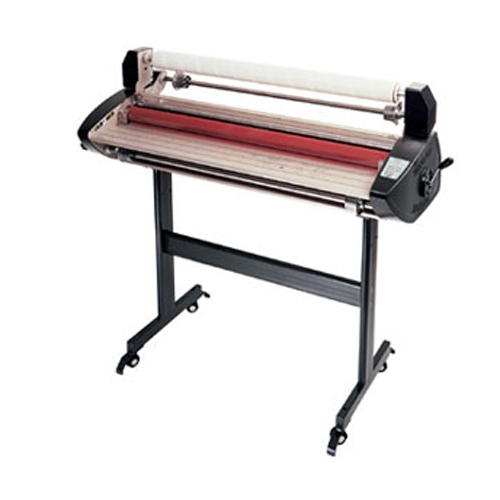

GBC Catena 105 Laminator


When productivity and profit count the most, Catena 105 meet the requirements of your most demanding jobs. Designed to encapsulate and mount prints from colour printers and copiers, the Catena 105 are also able to handle a wider variety of applications including standard poster-sized prints.


  • Document size: Banner / A0 Max (1041mm)
  • Film capability: Up to 25 – 250 Micron (Nap-Lam®, Octiva® Thermal, Arctic® Pressure Sensitive films)
  • Product range: 80 – 300 g/m²
  • Variable speed – Up to 1500 mm/min
  • Core diameter: 1” or 2.25”
  • Designed for both thermal or pressure sensitive film
  • LCD display indicates temperature, speed and ready/wait status
  • Interlocking feed tray and magnetic safety shield provide safe operation
  • Infrared heating coil distributes heat evenly and improves lamination quality
  • Silicone heat rollers reduce adhesive build up and cleaning time and provide a clean scratch less lamination
  • Roller gap adjustment handles mounting boards up to 0.19″ thick
  • Comes with optional rewind roller to peel away pressure-sensitive release liner


  • Max. Document Size: Banner / A0 (Max. 1041mm)
  • Pouch Capacity (mic): 25-250
  • Warm-up Time (min): 10
  • Speed (mm/min): 1500
  • No. of Rollers: 4
